Ok I am Back Looking for anyone with early Road King Removalable Backrest or Tourpak

Discussion in 'Motorcycle Tech Talk' started by Marc1340, Nov 18, 2015.

  1. Marc1340

    Marc1340 Active Member

    Joined:
    Dec 6, 2014
    Messages:
    154
    Likes Received:
    15
    Location:
    Nordeste Sao Miguel Azores
    Hi all I am interested is installing a removal hardware Kit for a backrest and tourpak on my 1996 Road King. I have read somewhere here that the 1997-2007 kit also works on a 1996. Having a hard time finding one for a 1996. If anyone can take a picture of their set up of the hardware so I can compare that would be great. for the guy with later models 20o8 and up it is major change to the set up that will not fit my bike, I need to see where the points set up on the early version. As always thanks in advanced to all and any info who has put a detachable kit on would be great
    Marc1340, Nov 18, 2015
    #1
  3. hotroadking

    hotroadking Super Moderator Staff Member

    Joined:
    Jun 16, 2004
    Messages:
    13,682
    Likes Received:
    584
    Location:
    Mouseville USA
    the older bikes have a complicated setup, involves several brackets
    removals of bolts that tie the fenders to the brackets it takes a bit more work
    than the 09 and up bikes with the frame change which is two bolt on parts with three screws each.

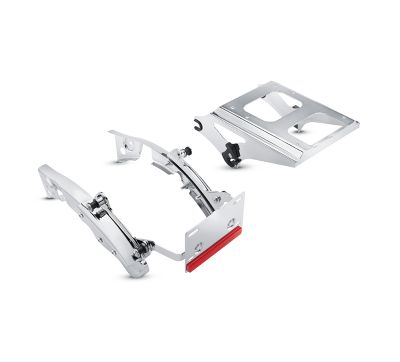

    this is the later model kit, 09 and up it WILL NOT fit your bike

    [​IMG]

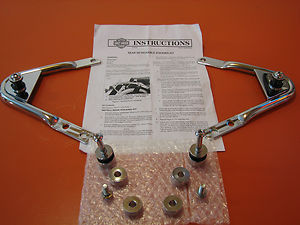

    Finding a picture of the complete kit for earlier bikes is difficult
    but this is part of it

    [​IMG]

    Docking mount for under tour pack

    [​IMG]
    Mounting plate under tour pack, connect to detachable mount points above

    ITs going to look like this

    [​IMG]

    Theres a lot more parts. I'm not sure why it would fit a 97 and up and not a 96, sometimes you just got to give it a try and modify some things, see if you can find out what's different on a 96 rear end FLH vs a 97,
    hotroadking, Nov 18, 2015
    #2
  4. hotroadking

    hotroadking Super Moderator Staff Member

    Joined:
    Jun 16, 2004
    Messages:
    13,682
    Likes Received:
    584
    Location:
    Mouseville USA
    [​IMG]
    hotroadking, Nov 18, 2015
    #3
    Marc1340 likes this.
  5. hotroadking

    hotroadking Super Moderator Staff Member

    Joined:
    Jun 16, 2004
    Messages:
    13,682
    Likes Received:
    584
    Location:
    Mouseville USA
    I don't know why it won't fit a 96, there must have been
    some mounting changes for the fender.

    Then again I've found ways to make parts fit, sometimes the moco
    just doesn't thing things will fit.
    hotroadking, Nov 18, 2015
    #4
  6. Marc1340

    Marc1340 Active Member

    Joined:
    Dec 6, 2014
    Messages:
    154
    Likes Received:
    15
    Location:
    Nordeste Sao Miguel Azores
    Thanks, HRK is it possible toup load a picture without the rack installed to the the docking points,same picture just without the rack. Thanks Buddy
    Marc1340, Nov 18, 2015
    #5
  7. Marc1340

    Marc1340 Active Member

    Joined:
    Dec 6, 2014
    Messages:
    154
    Likes Received:
    15
    Location:
    Nordeste Sao Miguel Azores
    P.S. you have a part number on the Rack?
    Marc1340, Nov 18, 2015
    #6
  8. hotroadking

    hotroadking Super Moderator Staff Member

    Joined:
    Jun 16, 2004
    Messages:
    13,682
    Likes Received:
    584
    Location:
    Mouseville USA
    I just googled HD detachable tour pack


    Sent from my iPhone using Tapatalk
    hotroadking, Nov 18, 2015
    #7
  9. Marc1340

    Marc1340 Active Member

    Joined:
    Dec 6, 2014
    Messages:
    154
    Likes Received:
    15
    Location:
    Nordeste Sao Miguel Azores
    I did the google thingeee just wanted to see the hook up on the bike of the bracket with out the box rack you set the picture, I could not find a picture on a 1996 or even a 1997 bolted in place on google, I did find a lot of pictures of the racks and mount points parts, by the way what year is the road king in your picture HRK?
    Marc1340, Nov 18, 2015
    #8
  10. hotroadking

    hotroadking Super Moderator Staff Member

    Joined:
    Jun 16, 2004
    Messages:
    13,682
    Likes Received:
    584
    Location:
    Mouseville USA
    That's a google picture no idea on year
    hotroadking, Nov 18, 2015
    #9
  11. Marc1340

    Marc1340 Active Member

    Joined:
    Dec 6, 2014
    Messages:
    154
    Likes Received:
    15
    Location:
    Nordeste Sao Miguel Azores
    Thanks HRK. the Mounting plate under tour pack for the 1997 to2008 looks like this one, just not to sure what the docking set up looks like on the 1997. maybe someone has the set up here and can upload a picture so I com s-l1600.png pare.
    Marc1340, Nov 18, 2015
    #10
  12. hotroadking

    hotroadking Super Moderator Staff Member

    Joined:
    Jun 16, 2004
    Messages:
    13,682
    Likes Received:
    584
    Location:
    Mouseville USA
    I'm going to guess its the two triangle bits in the picture above

    The front will go to the two chrome spacer bits that will replace two bolts on each side of the rear fender or right over the shock between it and the frame

    If you look at the picture of the blue bike the two triangle bits bolt to the frame ends and then down to the chrome fender supports that run down the back sides of the rear fender
    hotroadking, Nov 18, 2015
    #11
    Marc1340 likes this.
