Dropped a tiny washer when cleaning carb ...

Discussion in 'Other CV Performance products' started by 96roadking, Jan 20, 2014.

  1. 96roadking

    96roadking Member

    Joined:
    Jan 20, 2014
    Messages:
    12
    Likes Received:
    0
    Hi.

    I bought a complete tuners kit, rebuild kit and idle screw set up from CV Performance and was cleaning by CV40 carb (off an Evo 96 FLHR).

    Yup ... I did the dumb thing and let a tiny, what looks like stainless steel washer drop out when the cleaning carb. It's about the same size as the 92093 o-rings.

    Can any psychic ... or experienced tech ... tell me where it belongs as I guess this is a typical thing to do!

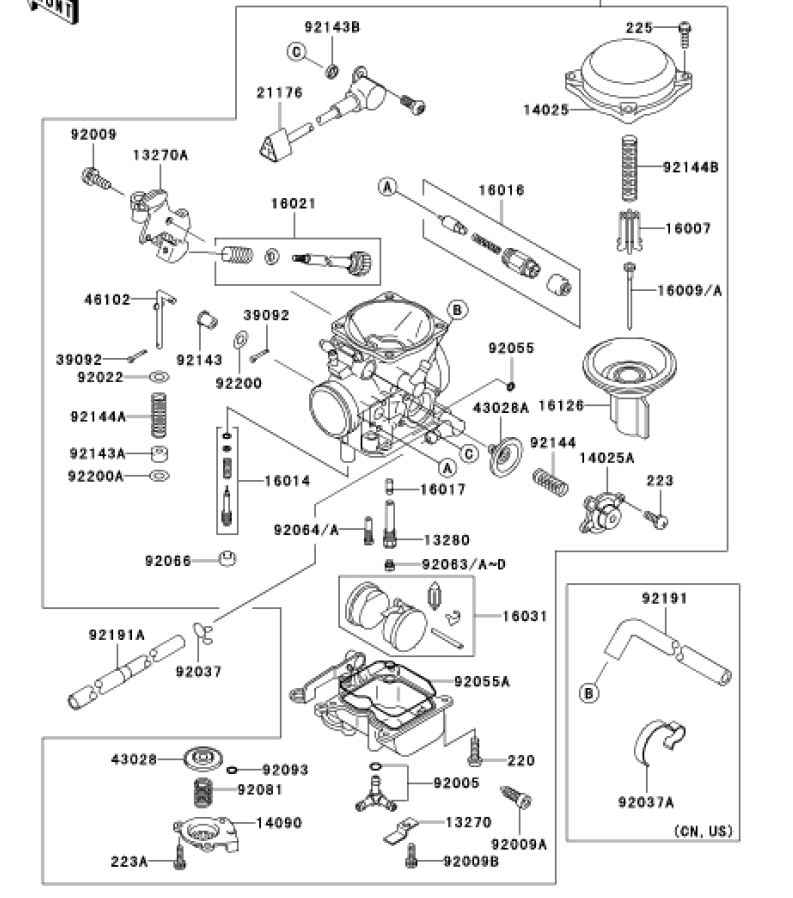

    Does it go above the idle jet adjuster (16014), e.g. in the order 'adjuster ... spring ... o ring ... washer'.

    * BTW, could I have permission to add URLs as I am obviously *not* a spammer and I cannot wait a year to solve this question!?!

    Thanks in advance.


    [​IMG]
    96roadking, Jan 20, 2014
    #1
  3. cowboy

    cowboy Moderator Staff Member

    Joined:
    Apr 19, 2006
    Messages:
    9,926
    Likes Received:
    50
    Location:
    Alvin TX
    from the looks of it I'll say in the 16014 area , glad you put the brake down up made it easier for me any how
    cowboy, Jan 23, 2014
    #2
  4. kenfuzed

    kenfuzed Administrator Staff Member

    Joined:
    Jan 1, 2005
    Messages:
    10,512
    Likes Received:
    140
    Location:
    Las Vegas NV
    I agree it is probably the stainless steel washer in section 16014 of that exploded view. The picture is not a Harley CV40 (looks like a CVK32) but that section of the mixture screw is common across all Keihin CV style carburetors. The stainless steel washer fits between the o-ring and spring and protects that o-ring from cutting on the ground edge of the spring. The 3 pieces make up the Mixture Packing Kit found here.
    kenfuzed, Jan 31, 2014
    #3
